Arduino Pro Mini Clone LGT8F328P | 3.3V / 5V Compact Development Board
Rs.260.00
Skip to product information
Arduino Pro Mini Clone LGT8F328P | 3.3V / 5V Compact Development Board
Rs.260.00

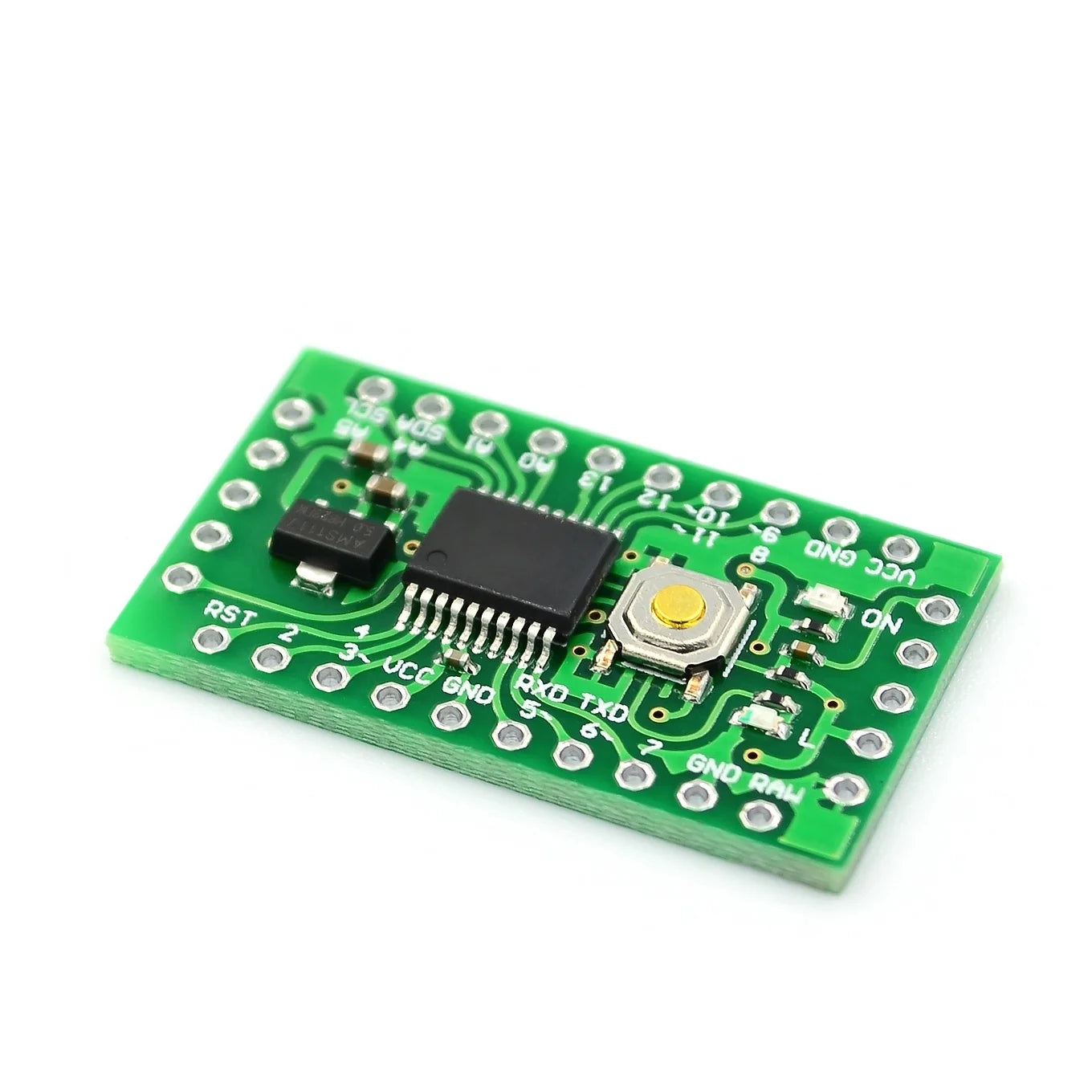

Arduino Pro Mini Clone — LGT8F328P
Discover the enhanced Arduino Pro Mini experience with the LGT8F328P-based Pro Mini Clone. This compact powerhouse replaces the traditional ATMEGA328P with the high-performance LGT8F328P chip — offering faster clock speeds, built-in DAC, and improved analog resolution, all in the same tiny footprint you love.
Key Features
- LGT8F328P microcontroller — a drop-in compatible upgrade over ATMEGA328P with enhanced peripherals
- Available in 3.3V and 5V versions — choose the right logic level for your project
- Clock Speed: Up to 32 MHz (vs 16 MHz on standard Pro Mini)
- 12-bit ADC — higher analog resolution than the standard 10-bit ATMEGA328P
- Built-in DAC — true analog output without external hardware
- Arduino Pro Mini pin-compatible — works with existing Pro Mini shields, adapters, and code
- Ultra-compact form factor — ideal for space-constrained embedded projects
- Requires external USB-to-Serial adapter (FTDI / CH340) for programming
- Arduino IDE compatible — program using standard Arduino sketches with LGT8F board package
Specifications
- Microcontroller: LGT8F328P (LQFP32)
- Operating Voltage: 3.3V or 5V (version dependent)
- Input Voltage: 3.35–12V (3.3V version) / 5–12V (5V version)
- Clock Speed: Up to 32 MHz
- Flash Memory: 32KB
- SRAM: 2KB
- ADC Resolution: 12-bit
- Digital I/O Pins: 14
- Analog Input Pins: 8
- PWM Channels: 6
- Interface: UART (via external USB-Serial adapter)
What's in the Box
- 1x LGT8F328P Arduino Pro Mini Clone Board
Ideal For
- Wearable electronics and compact IoT sensor nodes
- Battery-powered embedded projects requiring small size
- High-resolution analog sensing with 12-bit ADC
- Drop-in replacement for ATMEGA328P Pro Mini boards
- Robotics, automation, and lightweight control systems
Whether you need a smaller footprint, better analog performance, or faster processing — the LGT8F328P Pro Mini Clone delivers more than the standard Arduino Pro Mini at a fraction of the size.
