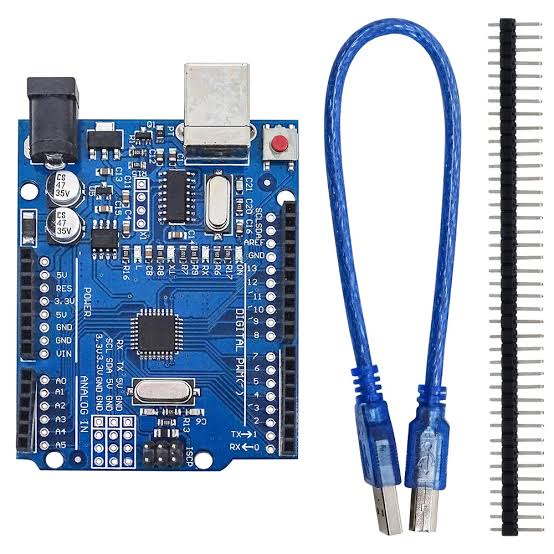

Arduino Uno R3 DIP With USB Cable

Arduino Uno R3 DIP With USB Cable

The Arduino Uno R3 is the world's most popular microcontroller board — and for good reason. This DIP (Dual In-line Package) version features a socketed ATmega328P chip, making it easy to swap or replace the microcontroller. Comes bundled with a USB Type-B cable so you can start programming right out of the box.

Key Features

• ATmega328P DIP — socketed chip for easy replacement and standalone deployment
• USB Type-B Cable Included — plug directly into your PC, no extra purchase needed
• 14 Digital I/O Pins — 6 PWM-capable for analog output and servo control
• 6 Analog Input Pins — 10-bit ADC resolution
• ICSP Header — for direct AVR programming
• Auto Power Select — powered via USB or DC barrel jack (7–12V)
• Arduino IDE Compatible — works on Windows, macOS, and Linux
• Onboard LED — pin 13 LED for quick sketch testing

Technical Specifications

• Microcontroller: ATmega328P (DIP package, socketed)
• Operating Voltage: 5V
• Input Voltage: 7–12V (recommended)
• Clock Speed: 16 MHz
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB | EEPROM: 1 KB
• Digital I/O: 14 pins (6 PWM)
• Analog Inputs: 6 pins
• USB Interface: ATmega16U2 USB-to-Serial
• Includes: USB Type-B Cable

Ideal For

Perfect for beginners learning electronics and programming, students working on coursework projects, and engineers prototyping embedded systems. The DIP package is especially useful when you need to deploy the ATmega328P standalone on a custom PCB.

100% Arduino IDE compatible. Fully open-source hardware.
