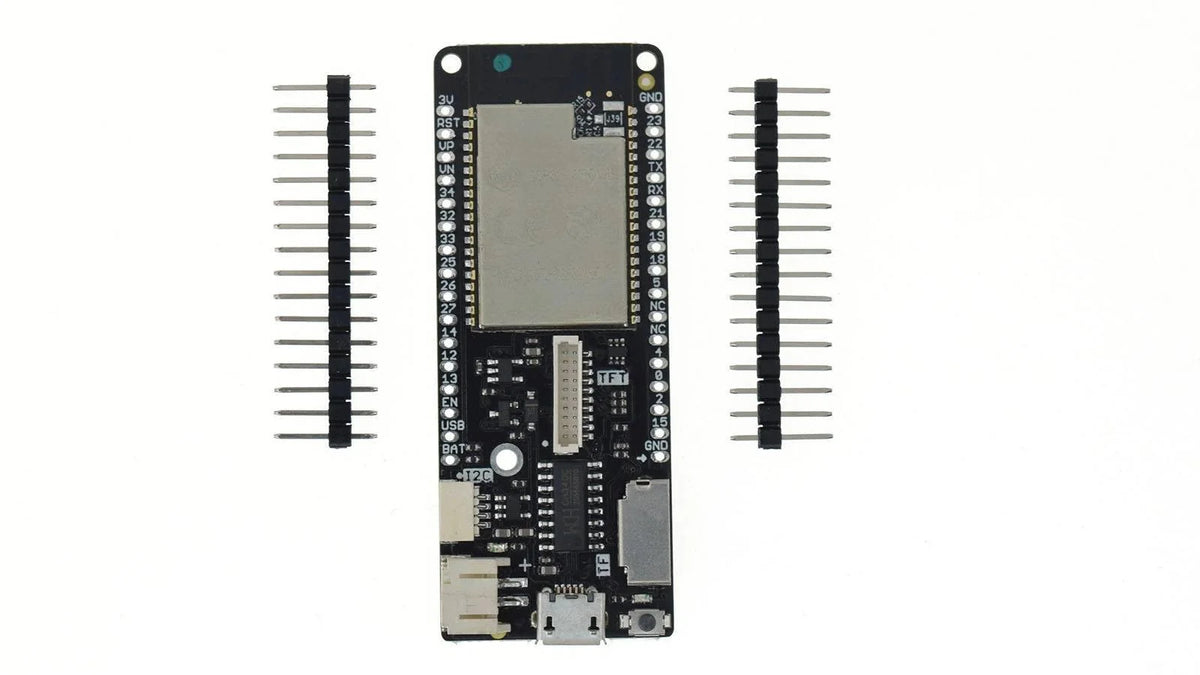

Lolin D32 Pro V2.0.0 ESP32 Development Board (Discontinued)

Lolin D32 Pro V2.0.0 — Advanced ESP32 Board with TFT & Battery Support

The Lolin D32 Pro V2.0.0 is a feature-rich ESP32 development board from Wemos/Lolin, packed with onboard LiPo battery charging, a TFT display connector, and an SD card slot — making it one of the most self-contained ESP32 boards available for advanced projects. Please note this product has been discontinued by the manufacturer; stock is limited.

If you need a compact all-in-one board for portable, battery-powered IoT projects with display support, the D32 Pro remains an excellent choice while supplies last.

Key Features

• ESP32 dual-core Tensilica LX6 at up to 240 MHz
• Built-in 802.11 b/g/n WiFi and Bluetooth 4.2 / BLE
• 4MB Flash + optional 4MB PSRAM
• Onboard LiPo battery connector and charging circuit
• Dedicated TFT display interface connector (compatible with Lolin TFT shields)
• Onboard Micro SD card slot
• 34 GPIO pins, 18 × 12-bit ADC, 2 × DAC, touch inputs
• Interfaces: UART, SPI, I2C, I2S, CAN, PWM
• Micro USB for programming and power
• 3.3V logic with on-board LDO regulator
• Supports Arduino IDE, MicroPython, and ESP-IDF

Ideal Applications

• Battery-powered portable IoT devices with display
• Handheld data loggers with SD card storage
• Wearables and smart gadgets
• WiFi/BLE sensor nodes requiring local data storage

Note: This is a discontinued product. Limited stock available — order while supplies last.
