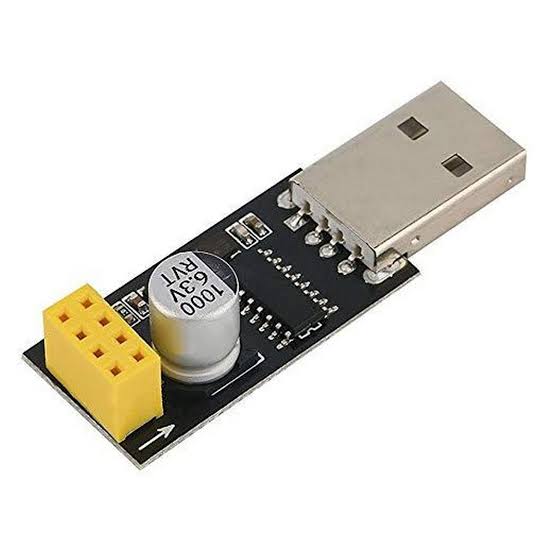

USB to ESP8266 Serial Adapter Wireless Wi-Fi Development Board

Flash & Program ESP8266 Modules Directly via USB

The USB to ESP8266 Serial Adapter is a dedicated programmer and development board that allows you to connect an ESP8266 module (ESP-01, ESP-01S) directly to your PC via USB for firmware flashing, serial communication, and AT command testing — no external USB-to-TTL adapter or breadboard required.

Key Features

• Direct USB connection to PC (no separate USB-to-TTL adapter needed)
• Onboard CH340 USB-to-UART chip for reliable communication
• Compatible with ESP-01 and ESP-01S modules (8-pin socket)
• PROG / UART mode switch for flashing vs. normal operation
• 3.3V onboard LDO regulator (sufficient current for ESP8266)
• TX / RX indicator LEDs for data monitoring
• Reset button for quick module restart

Operating Modes

• UART Mode: Normal operation / AT command testing
• PROG Mode: Firmware flashing via esptool or Arduino IDE

Compatible With

• ESP-01 (ESP8266 1MB flash)
• ESP-01S (ESP8266 1MB flash, blue LED)

Ideal For

Flashing custom firmware, uploading Arduino sketches to ESP-01 modules, AT command testing, Wi-Fi serial bridge projects, and getting started with ESP8266 development without complex wiring setups.

Note: ESP-01 / ESP-01S module not included. Install CH340 driver on your PC before use.
